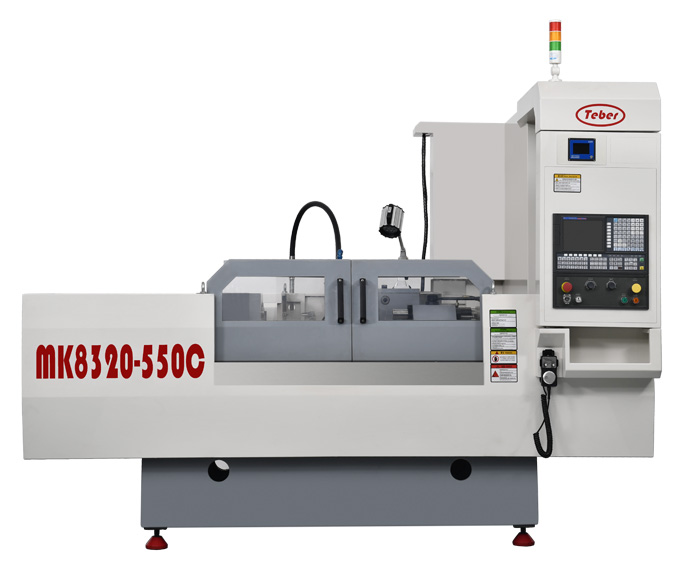

MK8320-550C (simple semi-protective) CNC (follow) camshaft grinder

Main functional features:

1. It adopts the special control system of grinding machine, three-axis AC servo motor control, two-axis imported high-precision ball screw, and imported bearing support; The C-type head frame adopts the precision electric spindle manufactured by 1.2KW Tebel, the D-type head frame adopts the torque servo motor manufactured by 1.2KW Tebel, and the electrical control is Schneider Electric. The machine tool has the function of automatic correction and compensation of grinding wheel, and measures such as safety emergency retreat protection in special cases.

2. This machine tool has the advantages of high repeated positioning accuracy, strong processing flexibility, good follow-up grinding quality, high efficiency, simple operation, easy learning, easy to realize automatic production, and multiple machining by one person. It is widely applicable to batch non-circular grinding of camshaft parts, non-circular surface, eccentric circle and other parts.

Pictures Of Processing Parts

Technical Spec

技术参数		规格
中心高	Center high	135mm
两顶尖中心距	Two top center distance	550mm
磨削直径范围	Grinding diameter range	Ф8~Ф200mm
非圆零件偏心距	Non-circular parts eccentricity	≤20mm
砂轮尺寸范围	Grinding wheel size range	Ф400×（25~50）×Ф203mm
砂轮线速度	Grinding wheel speed	≤45m/s （可选≤60m/s、≤90m/s、≤120m/s）
砂轮电机功率	Grinding wheel motor power	7.5kW
C轴电机功率	C-axis motor power	1.2kW（精密电主轴）
工件最大重量	Max weight of the workpiece	≤30kg
工作台纵向移动量	Length of movement of the table	≥720mm
砂轮架进给速度	Grinding wheel feed speed	0.01~6000mm/min
C轴转速	C axis speed	0~400r/min
C轴莫氏锥度	C-axis Mohs taper	MT5
尾架套筒行程	Tailstock sleeve travel	50mm
尾架莫氏锥度	Tailstock Mohs taper	MT4
工作精度圆度	Working accuracy roundness	≤1.5μm
尺寸一致性	Dimensional consistency	≤3μm/315mm
表面粗糙度	Surface roughness	Ra0.1~0.4μm
X轴重复定位精度	Xaxis repeat psitioning accuracy	≤1.5μm(50次)
Z轴重复定位精度	Z-axis repeat psitioning accuracy	≤4.0μm(50次)
执行标准	Implementation of standards	Q/320281BGF01-2016 GB/T4685-2007
机床重量	Machine weight	3600kg
机床外形尺寸(L×W×H)	Machine dimensions(L×W×H)	2800×1800×2080mm
标准配置Standard Configuration
GSK986GS数控磨床系统GSK986GS CNC Grinding Machine System
电气柜空调Electric cabinet air conditioner
磁性过滤冷却Magnetic fiter cooling
特贝尔科技凸轮轮廓编程软件包(含加密狗)Teber Technoiogy Cam Profile Programming Package(with dongle）
可选配置Optional Configuration
FANUC31i/G数控系统 FANUC 31i/G CNC system
SIEMENS 840D数控磨床系统 SIEMENS 840D CNC Grinding Machine System
油雾机 oil mist machine
